Have you ever looked at a micrometer and thought, “How do I even use this thing?” You’re not alone. Whether you’re working on precise measurements for a project or simply want to sharpen your skills, learning how to read a micrometer can feel intimidating at first.

But here’s the good news: it’s easier than you think, and mastering it can save you time, effort, and headaches in the long run. In this guide, you’ll discover step-by-step instructions to confidently read a micrometer without second-guessing yourself. Stick around, because by the end of this article, you’ll have the knowledge to measure like a pro!

What Is A Micrometer

A micrometer is a precision measuring tool used to measure small distances or dimensions with extreme accuracy. It’s a common tool in industries like manufacturing, engineering, and metalworking, where precision is critical. By learning how to read a micrometer, you can measure objects down to fractions of a millimeter or inch, ensuring your work meets exact specifications.

What Does A Micrometer Look Like?

A micrometer typically resembles a small C-shaped tool with a spindle and a thimble. The object to be measured is placed between the anvil and the spindle, which you adjust using the thimble. The body of the micrometer includes a scale, which is key to obtaining accurate measurements.

There are several types of micrometers, each suited for specific purposes:

• Outside Micrometer:Used for measuring the outside dimensions of objects like rods, wires, or blocks.
• Inside Micrometer:Designed for measuring the internal dimensions of spaces like holes or tubes.
• Depth Micrometer:Ideal for measuring the depth of holes, slots, or recesses.

Choose the type that matches the nature of your measurement task for the best results.

How Does A Micrometer Work?

A micrometer measures distances using a calibrated screw mechanism. As you rotate the thimble, the spindle moves closer to or farther from the anvil. The precision of the screw mechanism allows for extremely accurate readings, often down to 0.01 mm or 0.001 inches.

Why Use A Micrometer Instead Of A Ruler?

While rulers or calipers are useful for general measurements, they lack the precision of a micrometer. A micrometer can detect minute differences in size that other tools might miss. For example, if you need to ensure a component fits perfectly into a machine, a micrometer’s accuracy can make all the difference.

Credit: m.youtube.com

Types Of Micrometers

Understanding the types of micrometers is a crucial step in mastering how to read them. Each type is designed for a specific purpose, and knowing their differences can save you time and effort. Let’s break it down into the three most common types: outside micrometer, inside micrometer, and depth micrometer.

Outside Micrometer

The outside micrometer, often referred to as a micrometer caliper, is the most common type. It measures the external dimensions of objects, like the thickness or diameter of a part. If you’ve ever needed to measure the width of a metal rod or a flat sheet, this is your go-to tool.

Using an outside micrometer is straightforward. Place the object between the anvil and spindle, then gently turn the ratchet knob until it clicks. Always ensure the micrometer is clean and calibrated for accurate readings.

Inside Micrometer

An inside micrometer is perfect for measuring internal dimensions, like the diameter of a hole or the width of a groove. It’s a bit more specialized but invaluable when precision is critical.

These micrometers use extending rods or tubular extensions to reach into the measurement area. Always double-check your alignment to ensure consistent readings. Have you ever wondered how machinists measure tight tolerances inside a cylinder? This is how they do it.

Depth Micrometer

A depth micrometer does exactly what its name suggests—it measures depth. It’s commonly used for tasks like gauging the depth of a hole, recess, or slot.

This tool features a flat base that rests on the surface, with a spindle extending downward to measure depth. Adjust the spindle carefully and read the scale to get your measurement. Have a small project requiring precision depth measurement? This tool will make it effortless.

Each type of micrometer serves a unique purpose, but they all share a common goal: precision. Which type do you think you’ll use most often? Understanding their differences will help you choose the right tool for the job and improve your measurement accuracy.

Parts Of A Micrometer

Understanding the parts of a micrometer is essential for accurate readings. Key components include the frame, spindle, anvil, sleeve, thimble, and ratchet. Each part works together to measure small dimensions with precision.

Understanding the parts of a micrometer is essential for accurate measurements. Each part plays a critical role in ensuring precision. Below, we break down the key components of a micrometer.

Frame

The frame is the U-shaped body of the micrometer. It provides support and holds all other parts together. It is often made of steel or cast iron for durability and stability. The design minimizes flexing to maintain accuracy during measurements.

Anvil

The anvil is the flat, stationary part that makes contact with the object being measured. It is positioned opposite the spindle. Its surface is hardened to resist wear and ensure consistent measurements.

Spindle

The spindle is the movable measuring part. It slides forward or backward when you rotate the thimble. The spindle makes contact with the object, and its movement determines the measurement.

Sleeve

The sleeve is the stationary cylindrical part marked with a linear scale. It displays the main measurement values. You read the sleeve to determine the initial measurement before checking finer adjustments.

Thimble

The thimble is the rotating part that controls the spindle's movement. It is marked with a secondary scale for finer measurements. Turning the thimble adjusts the spindle to measure the object accurately.

Ratchet Stop

The ratchet stop is a mechanism that limits the pressure applied during measurements. It ensures consistent force while tightening the spindle. This helps avoid errors caused by excessive force.

How A Micrometer Works

Understanding how a micrometer works can make precise measurements simpler. This tool is essential for measuring small objects or dimensions accurately. It uses a screw mechanism to convert small rotations into linear movements. The micrometer's design ensures consistent readings, even for tiny measurements.

How The Screw Mechanism Functions

The micrometer relies on a precision screw to measure dimensions. When the spindle rotates, it moves linearly along the axis. The threads on the screw determine the movement scale. Each turn of the screw corresponds to a specific measurement increment.

Reading The Thimble Scale

The thimble is the rotating part of the micrometer. It displays markings to help users read measurements. These markings work with the main scale to ensure accuracy. Aligning the thimble scale with the main scale gives the measurement value.

Understanding The Main Scale

The main scale shows larger measurement increments. It is engraved on the micrometer’s sleeve. The numbers represent millimeters or inches, depending on the micrometer type. Combine readings from the main scale and thimble scale for precise results.

Role Of The Ratchet Stop

The ratchet stop ensures consistent pressure during measurements. It prevents excessive force from affecting the reading. Turning the ratchet until it clicks provides the correct pressure. This feature makes measurements more reliable.

Importance Of Calibration

Calibration ensures the micrometer delivers accurate readings. Over time, wear can affect its precision. Regular calibration checks keep the tool reliable. Use gauge blocks or standards for proper calibration.

Steps To Read A Micrometer

Using a micrometer might seem intimidating at first glance, but once you break it down step by step, it becomes surprisingly simple. A micrometer is an essential tool for precision measurements, widely used in engineering, machining, and even by hobbyists. To get accurate results, it’s crucial to understand how to properly read a micrometer. Below, we’ll guide you through the process of measuring with a micrometer in a clear and actionable way.

Positioning The Object

Start by placing the object you want to measure between the anvil and spindle of the micrometer. Ensure the object is clean and free from dirt or debris that could affect the reading. Hold the micrometer firmly, but don’t apply excessive force—it’s all about precision.

Make sure the object is properly aligned, sitting squarely between the measuring faces. If it’s tilted or off-center, your measurement won’t be accurate. Take a moment to double-check the positioning before moving forward.

Adjusting The Thimble

Turn the ratchet or thimble gently to close the spindle onto the object. Use the ratchet stop for consistent pressure, as over-tightening can distort the measurement. The ratchet ensures you apply the same amount of force every time you take a reading.

Stop turning as soon as the ratchet clicks. This ensures the spindle lightly touches the object without compressing it. Precision depends on this step, so be gentle but deliberate.

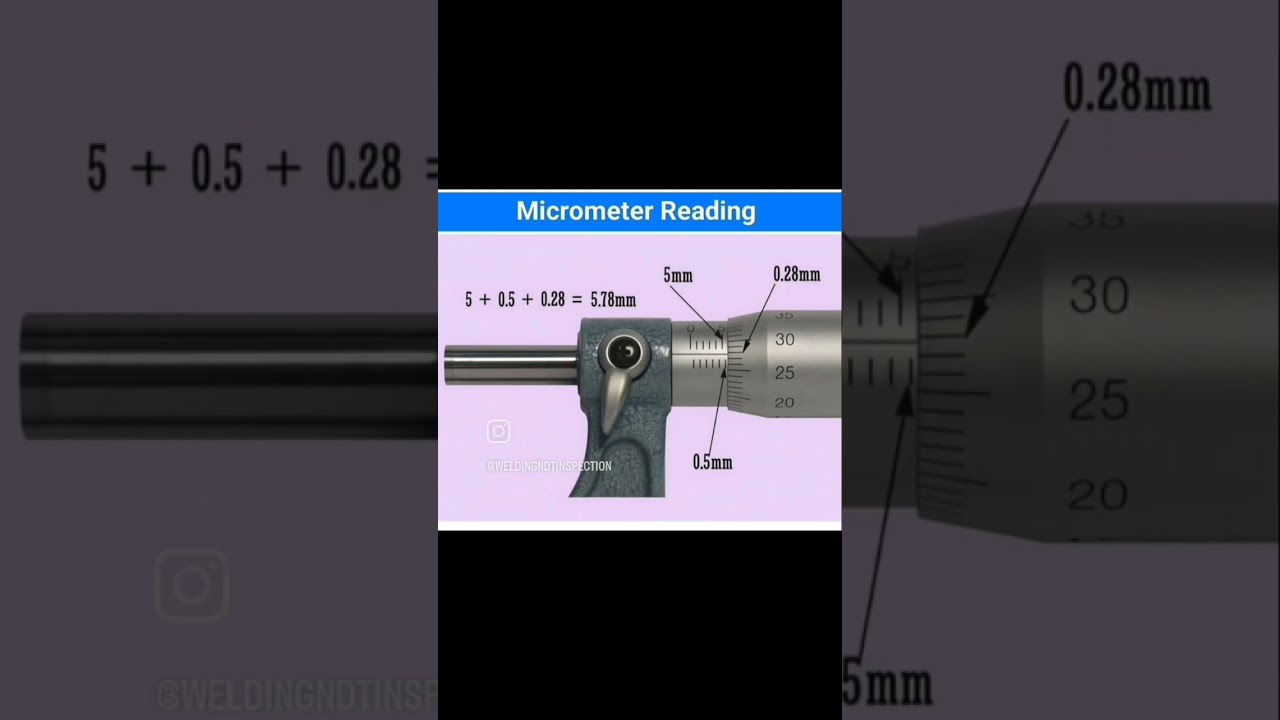

Reading The Sleeve Scale

Look at the sleeve of the micrometer to find the whole millimeters (or inches, depending on your micrometer) and half-millimeter marks. These marks are engraved on the stationary part of the tool.

For example, if the sleeve shows 5 full millimeters and one additional half-millimeter mark, your reading so far is 5.5 mm. Always read this scale first—it sets the foundation for your final measurement.

Reading The Thimble Scale

Next, check the rotating thimble scale, which is divided into smaller increments (usually 0.01 mm or 0.001 inches). Find the number on the thimble scale that aligns perfectly with the horizontal line on the sleeve.

Let’s say the thimble scale reads 0.24 mm. Add this value to the sleeve reading. If you’re unsure, take a second to confirm the alignment—it’s better to be precise than to rush.

Calculating The Final Measurement

Add the values from the sleeve and thimble scales together to get the final measurement. For example, if the sleeve reads 5.5 mm and the thimble reads 0.24 mm, your total measurement is 5.74 mm.

Double-check your calculation to ensure accuracy. Measurements with a micrometer require attention to detail, and a quick review can save you from potential errors.

And there you have it—a precise measurement using a micrometer! It may take a bit of practice at first, but with time, you’ll find it becomes second nature. What will you measure next?

Credit: www.regionaltech.com.sg

Tips For Accurate Measurements

Reading a micrometer accurately requires more than just understanding the scale. Small errors in technique can lead to incorrect readings, which defeats the purpose of using this precise tool. By following a few practical tips, you can ensure your measurements are spot-on every time.

Maintaining Proper Alignment

Alignment is critical when using a micrometer. Always make sure the axis of the micrometer is perfectly aligned with the object you’re measuring. If the tool tilts even slightly, you risk getting a skewed reading.

Position your workpiece securely and avoid holding it at odd angles. For example, if you're measuring a cylindrical object, ensure it’s perpendicular to the anvil and spindle. A quick double-check before taking the reading can save you from unnecessary errors.

Using Consistent Pressure

How much pressure you apply can significantly impact your results. Most micrometers have a ratchet or friction thimble to help you apply consistent pressure. Always use this feature to avoid over-tightening or under-tightening the tool.

If you don’t use consistent pressure, you might compress the object slightly or leave a gap, leading to inaccurate readings. Practice turning the ratchet until you hear the click—it’s designed to guide you to the right amount of pressure.

Keeping The Micrometer Clean

A clean micrometer is an accurate micrometer. Dust, oil, or debris on the spindle or anvil can interfere with measurements. Use a soft, lint-free cloth to wipe down the surfaces before and after use.

If you're working in a greasy or dusty environment, take extra care to clean the tool more frequently. Even a tiny particle can create a gap and throw off your reading. This small habit can greatly improve your long-term accuracy.

Common Mistakes To Avoid

Reading a micrometer requires precision and attention to detail. Beginners often make mistakes that lead to inaccurate measurements. Understanding these common errors can help you improve your skills and ensure reliable results.

Misreading The Scales

One frequent error is confusing the main scale and the thimble scale. Always double-check the alignment of the lines on both scales. Misinterpreting the smallest divisions can lead to incorrect readings. Take your time to ensure the numbers align perfectly. Practice reading the micrometer slowly until you gain confidence.

Overtightening The Ratchet

Applying excessive force to the ratchet is a common mistake. Overtightening can damage the micrometer or distort the measurement. Use gentle pressure when turning the ratchet. The ratchet is designed to stop automatically when the correct tension is achieved. Avoid forcing it beyond its limit.

Ignoring Calibration

Using an uncalibrated micrometer leads to inaccurate measurements. Regular calibration ensures the device remains precise. Check the zero setting before every use. If the micrometer shows a reading when fully closed, it needs recalibration. Always store the tool properly to maintain its accuracy over time.

Maintaining Your Micrometer

Taking care of your micrometer is just as important as knowing how to read it. A well-maintained micrometer ensures accuracy, extends its lifespan, and saves you from costly replacements. If you’ve ever struggled with inconsistent readings, proper maintenance might be the missing link.

Regular Cleaning

Dirt and debris can easily compromise your micrometer’s precision. Make it a habit to wipe down your micrometer after each use with a clean, lint-free cloth. Avoid using harsh chemicals—stick to a light machine oil or specialized cleaning solution for stubborn grime.

Pay special attention to the spindle and anvil surfaces. These are the contact points for measurements, so even a tiny speck of dust can throw off your readings. Keep a soft brush handy for cleaning hard-to-reach areas.

Proper Storage

Where you store your micrometer matters. Always keep it in a protective case to shield it from moisture, dust, and accidental damage. If your workspace is humid, consider adding a silica gel pack to the case to prevent rust.

Avoid leaving your micrometer on workbenches where it can be knocked over or exposed to sudden temperature changes. Store it in a dedicated drawer or cabinet designed for precision tools. This small step can significantly reduce wear and tear.

Periodic Calibration

Even the most well-maintained micrometers can drift out of calibration over time. Make periodic calibration a priority to ensure continued accuracy. Use a calibration standard like a gauge block to check your micrometer's readings.

If you notice discrepancies, don’t try to fix it yourself unless you’re trained to do so. Take it to a professional calibration service. Think of it as a tune-up for your tool, ensuring it works perfectly when you need it most.

Credit: www.youtube.com

Frequently Asked Questions

How Do You Use A Micrometer Correctly?

To use a micrometer correctly, clean the object and micrometer. Align the object between the spindle and anvil. Rotate the thimble gently until snug. Avoid overtightening for accurate readings.

What Are The Parts Of A Micrometer?

A micrometer consists of an anvil, spindle, sleeve, thimble, and ratchet stop. These parts work together to measure objects precisely.

How Do You Read A Micrometer Scale?

Read the sleeve for millimeters or inches, then check the thimble for additional measurements. Combine both readings for accuracy.

What Is The Purpose Of A Micrometer?

A micrometer is used to measure small dimensions with high accuracy. It's ideal for mechanical, engineering, and manufacturing applications.

Conclusion

Reading a micrometer gets easier with practice and patience. Start by understanding its parts and scales. Take your time to measure accurately and avoid rushing. Always double-check your readings to ensure precision. Keep your micrometer clean and well-maintained for consistent results.

With regular use, you’ll build confidence in your skills. Remember, accuracy comes with attention to detail. Practice often, and you’ll improve quickly. Use this tool to achieve precise measurements in your projects. It’s a valuable skill worth developing for many applications.

Stay focused, and you’ll succeed in no time.
