Are you struggling with drawer slides that don’t fit quite right? Measuring drawer slides might seem tricky, but it’s easier than you think.

Getting the measurement right is the first step to smooth, easy-to-use drawers that last longer. In this guide, you’ll learn simple steps to measure your drawer slides accurately, so you can replace or install them without any guesswork. Keep reading, and you’ll save time, avoid costly mistakes, and enjoy perfectly functioning drawers in no time.

Credit: www.familyhandyman.com

Types Of Drawer Slides

Drawer slides come in different styles for various needs. Choosing the right type helps your drawer work smoothly.

Here are common types of drawer slides and their features to consider.

Ball Bearing Slides

Ball bearing slides use small metal balls to roll the drawer in and out. They are strong and support heavy weights well.

• Allow smooth and quiet movement
• Can handle heavy drawers
• Usually visible on the sides of drawers
• Easy to install and maintain

Soft-close Slides

Soft-close slides have a mechanism to close drawers slowly and quietly. They prevent slamming and reduce wear.

Undermount Slides

Undermount slides attach under the drawer. They are hidden from view and give a clean look.

These slides often have features like soft-close and full extension.

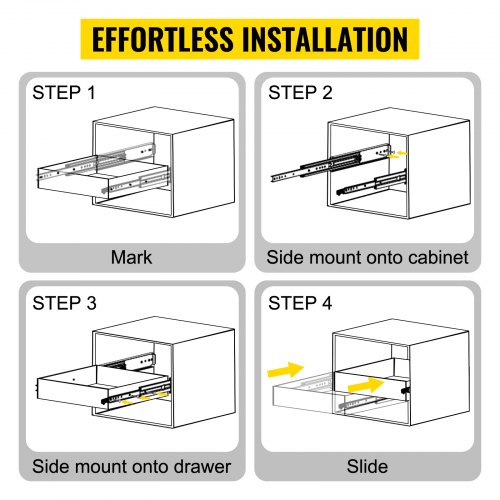

Credit: www.vevor.com

Tools Needed For Measurement

Measuring drawer slides correctly needs the right tools. Using proper tools helps get exact measurements.

These tools make the process easier and more accurate. You can measure drawer slides with simple, common tools.

Tape Measure

A tape measure is the main tool to measure drawer slides. It shows length in inches or centimeters.

Use a tape measure to check the slide length and drawer depth. Pull the tape straight for accuracy.

• Choose a tape measure with clear markings
• Use a metal tape for durability
• Check both inside and outside lengths

Screwdriver

A screwdriver helps remove screws holding the drawer slides. This lets you measure slides properly.

Use the right screwdriver type to avoid stripping screws. Keep screws safe for reassembly.

• Flathead screwdrivers for flat screws
• Phillips screwdrivers for cross-head screws
• Magnetic tip screwdrivers help hold screws

Level

A level checks if the drawer slides are straight. Proper alignment prevents drawer sticking.

Place the level on the slide or drawer frame to see if it is even. Adjust if needed before measuring.

• Use a small bubble level for tight spaces
• Check both horizontal and vertical alignment
• Hold the level steady for accurate reading

Removing Old Drawer Slides

Removing old drawer slides is important before installing new ones. It helps you measure and fit new slides correctly. You need to work carefully to avoid damage to the drawer or cabinet.

This guide shows how to remove old slides by identifying the type and unscrewing them safely.

Identify The Slide Type

Look closely at your drawer slides to find out their type. Different slides need different removal methods. Common types are side-mount, under-mount, and center-mount slides.

• Side-mount slides:Attached to the sides of the drawer and cabinet.
• Under-mount slides:Hidden under the drawer, inside the cabinet.
• Center-mount slides:Attached under the drawer’s center bottom.

Unscrew And Remove

Use a screwdriver to remove screws holding the slides. Keep the screws safe for reinstallation or disposal. Remove the slides from both the drawer and cabinet.

1. Open the drawer fully to access the slides.
2. Unscrew the slide attached to the drawer side or bottom.
3. Pull the slide gently away from the drawer.
4. Unscrew and remove the slide from the cabinet side.
5. Check the drawer and cabinet for any leftover pieces.

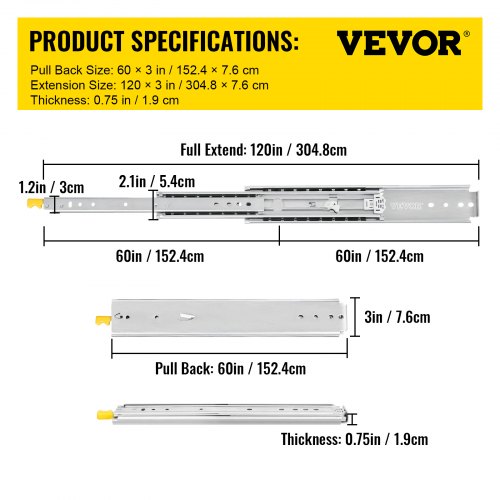

Credit: www.vevor.com

Measuring Drawer Length

Knowing the correct drawer length helps you pick the right drawer slides. It ensures smooth opening and closing.

Measuring drawer length is easy if you follow the right steps carefully. This guide will help you measure properly.

Measure Inside Drawer

Start by opening the drawer fully. Use a tape measure to find the inside length from the front to the back.

Measure along the bottom inside edge. This gives the actual space where the slide will fit.

• Open the drawer fully
• Place tape measure inside at the bottom
• Measure from front to back inside edge
• Write down the measurement

Determine Slide Length

Drawer slides usually match the drawer length or are slightly shorter. Choose slides that fit inside the drawer space.

Check the drawer's inside length and pick slides that are the same or a bit less. This helps avoid rubbing or sticking.

• Use the inside drawer length measurement
• Choose slides equal to or slightly shorter than this length
• Remember, too long slides may not fit well
• Too short slides may reduce drawer support

Measuring Cabinet Depth

Measuring the cabinet depth is important for fitting drawer slides properly. It helps you choose slides that fit inside the cabinet without issues.

Take careful measurements inside the cabinet. This ensures the drawer slides work smoothly and the drawer fits well.

Check Cabinet Interior

Look inside the cabinet to see how much space you have. Measure from the back wall to the front edge of the cabinet.

Make sure to measure where the drawer slides will be installed. Sometimes the inside walls are not flat or have obstructions.

• Clear out any obstacles inside the cabinet.
• Use a tape measure for accuracy.
• Measure at different heights to check for variations.

Account For Slide Extension

Drawer slides extend beyond the cabinet depth when the drawer opens. You must allow space for this extension.

Check the slide’s full extension length. Add this length to your cabinet depth measurement to ensure the slide fits and works properly.

• Measure the slide’s closed length inside the cabinet.
• Note the slide’s full open extension length.
• Make sure the cabinet depth allows the slide to open fully.

Choosing The Right Slide

Choosing the right drawer slide is important for smooth operation. The slide must fit your drawer size and purpose.

Good slides hold the drawer well and last a long time. This guide helps you pick the best slide for your needs.

Weight Capacity Considerations

Check the weight your drawer will carry before selecting slides. Slides have limits on how much weight they support.

Using slides with too low weight capacity can cause damage or poor function. Choose slides that hold more than your drawer’s weight.

• Light-duty slides: hold up to 75 lbs, good for small drawers
• Medium-duty slides: hold 75 to 100 lbs, fit most furniture drawers
• Heavy-duty slides: hold over 100 lbs, best for tool or heavy storage drawers

Material And Finish Options

Drawer slides come in different materials like steel, aluminum, and plastic. Each material has its own benefits.

Finishes protect slides from rust and wear. Choose a finish that matches your environment and style.

• Steel slides: strong and durable, often zinc-plated to resist rust
• Aluminum slides: lightweight and rust-resistant, good for humid areas
• Plastic slides: quiet and smooth, used for light loads
• Zinc finish: common, protects against rust
• Black oxide finish: offers a sleek look and some corrosion resistance
• Powder coating: adds color and extra protection

Installation Tips

Measuring drawer slides correctly is key to smooth operation. Good installation makes your drawers open and close easily.

Follow these tips to align and secure your drawer slides properly. This helps avoid problems later on.

Aligning The Slides

Place the drawer slide level and straight. Use a ruler or level tool to check the alignment.

Make sure both slides on the drawer and cabinet match in height and position. Uneven slides cause sticking.

• Mark where the slides will go before attaching
• Check the slide length matches the drawer depth
• Keep slides parallel to drawer sides
• Test slide movement before securing completely

Securing With Screws

Use the right screws for your slides and drawer material. Small screws can strip or break easily.

Drive screws straight and firm. Loose screws cause wobble; over-tight screws can damage the slide.

• Start by hand-tightening screws
• Use a screwdriver or drill with low torque
• Place screws in all slide holes for stability
• Check slide operation after each screw

Common Mistakes To Avoid

Measuring drawer slides correctly is very important. Mistakes can cause the drawer to fit poorly or not work at all.

Here are two common mistakes people make when measuring drawer slides. Avoiding these will save you time and frustration.

Incorrect Measurements

Many people measure the drawer or cabinet wrong. This leads to buying slides that are too long or too short.

Measure the exact length of the slide space inside the cabinet. Do not guess or use the drawer length.

• Measure from the front edge to the back inside wall of the cabinet
• Measure both sides to check for differences
• Use a metal tape measure for accuracy
• Write down the measurements before buying

Mismatched Slide Types

Using the wrong type of drawer slide causes fitting problems and poor drawer movement. Slides come in different styles like side-mount, under-mount, and center-mount.

Make sure the slide type matches your drawer and cabinet design. Mixing types can stop the drawer from closing or cause damage.

• Check if your drawer needs side-mount or under-mount slides
• Confirm the weight capacity of the slides matches your drawer load
• Use slides designed for the drawer’s width and height
• Buy slides with the same extension length (full, three-quarter, or partial)

Maintenance And Care

Proper care helps drawer slides work smoothly. Regular upkeep extends their life and prevents damage.

Simple actions can keep your drawer slides in top shape. Focus on cleaning and lubrication for best results.

Regular Cleaning

Dust and dirt build up inside slides. Cleaning removes debris that blocks smooth movement.

• Remove the drawer carefully from the cabinet.
• Use a soft brush or cloth to clear dust and dirt.
• Vacuum inside the slide tracks if possible.
• Wipe metal parts with a damp cloth and dry well.
• Check for rust or damage during cleaning.

Lubrication Tips

Lubricant reduces friction and wear on moving parts. Use the right type for smooth operation.

Apply a thin layer to the slide rails. Avoid over-lubricating to prevent attracting dust.

Frequently Asked Questions

How Do I Measure Drawer Slides Length Correctly?

Measure the drawer slide from the front mounting hole to the back mounting hole. Use a tape measure for accuracy. Include the entire slide length to ensure proper fit and smooth operation.

What Tools Are Needed To Measure Drawer Slides?

You need a tape measure or ruler for precise measurement. A pencil and paper help record dimensions. These simple tools ensure accurate and easy drawer slide measurement.

How To Measure Drawer Width For Slides?

Measure the inside width of the drawer cabinet. Subtract about 1/2 inch for clearance. This helps select the correct slide length and width for smooth drawer operation.

Can I Measure Drawer Slides Without Removing Drawers?

Yes, measure slides by pulling the drawer partially out. Extend the slide and measure the visible length. This method saves time and avoids drawer removal.

Conclusion

Measuring drawer slides is simple with the right steps. Always measure the length inside the drawer space. Check the slide type to match your drawer needs. Use a tape measure for accuracy and note the size. Correct measurement helps ensure smooth drawer operation.

Take your time and measure twice to avoid mistakes. Properly sized slides make your drawers work well. Now, you can pick the right slides with confidence. Measuring right saves time and effort later on. Keep these tips in mind for easy drawer slide measurement.
